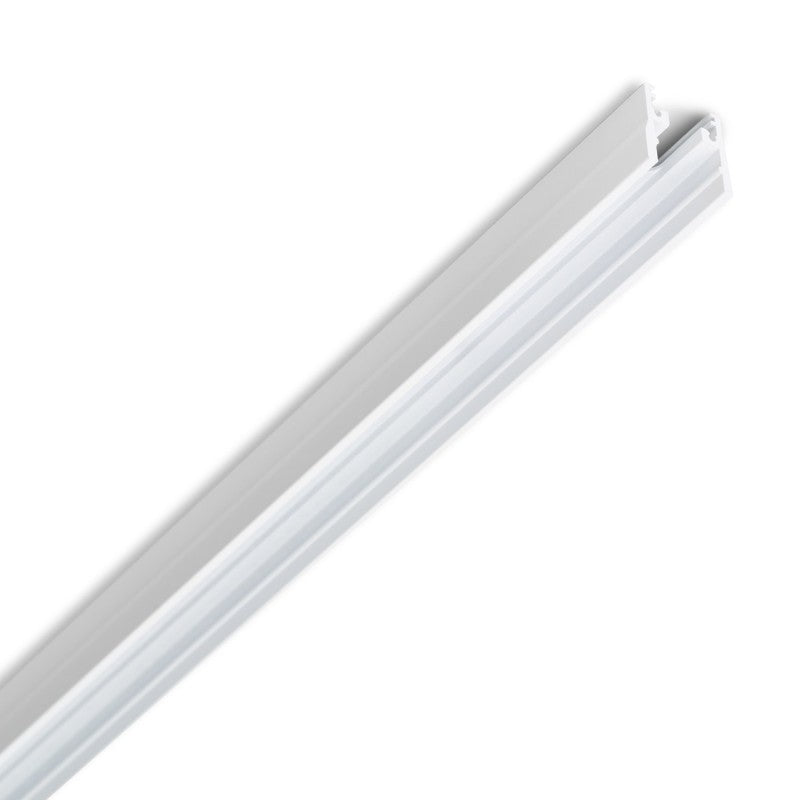

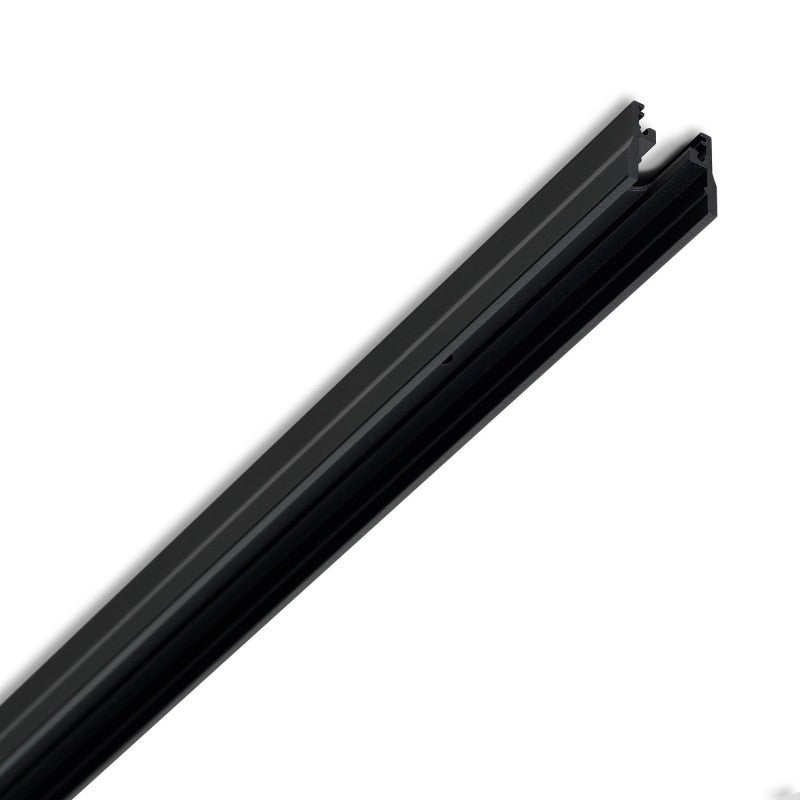

TRACK IP65 | Outdoor rail | 1 or 2 meters | 48V

48V track system suitable for outdoor use, IP65. For carports, verandas, canopies or façades: lighting that you can move or expand later without drilling again.

How the system works

Fill the entire full length of the track with TRACK IP65 LED LINE light lines. These light lines seal the track watertight (without full coverage, the system is not IP65) and supply power to the spotlights. The spotlights (MURANO, LIDO, FERNA and SONIC) are added to the track; they do not work without LED LINE.

Tip: under Light line above, select the LED LINE in the same length as the track (3000K, 4000K or 4000K smoky). This way, you can order the track and light line correctly in one go.

What you need

1. Track in 1, 2 or 3 metres (this product)
2. LED LINE light lines: the same number of metres as the length of your track. Select it above via the Light line option, or order it separately.
3. Spotlights as desired: MURANO, LIDO, FERNA or SONIC
4. Driver of 100, 200 or 300W: add up the wattage of the light lines and spotlights and allow approximately 20% headroom
5. Driver cover box if the driver is installed outdoors or in a damp location
6. Connectors for straight connections, corners, T-connections and X-connections
7. Covers and end caps: one end cap on each open end and one cover over each connection
8. Suspension kit for suspended installation, plus silicone sealant for the connections

Example calculation: carport with a 3-metre track

1 3-metre track with a light line (33W) and 2 FERNA spotlights (32W). Total: 65W; with a 20% margin, 78W: a 100W driver is sufficient. You will also need 2 end caps and a cover box if the driver is installed outdoors.

Specifications
