LED2 QUADRA | wall light | IP44 | 60 / 90 / 120 cm

The LED2 QUADRA is a sleek linear wall light for indoor use with square end caps and IP44 protection, designed as bathroom lighting above or next to mirrors. The minimalist 78 × 40 mm chrome aluminum housing with opal PMMA diffuser provides architectural precision and glare-free light output — perfect for modern bathrooms, sanitary facilities, and design-sensitive residential and commercial projects.

With the CCT switch (on the standard and DALI/Push versions), you can choose between warm white (3000K) and neutral white (4000K). The tunable white versions (DALI TW and Casambi TW) offer continuously adjustable color temperature between 3000K and 4000K for maximum control and atmosphere setting.

Three sizes

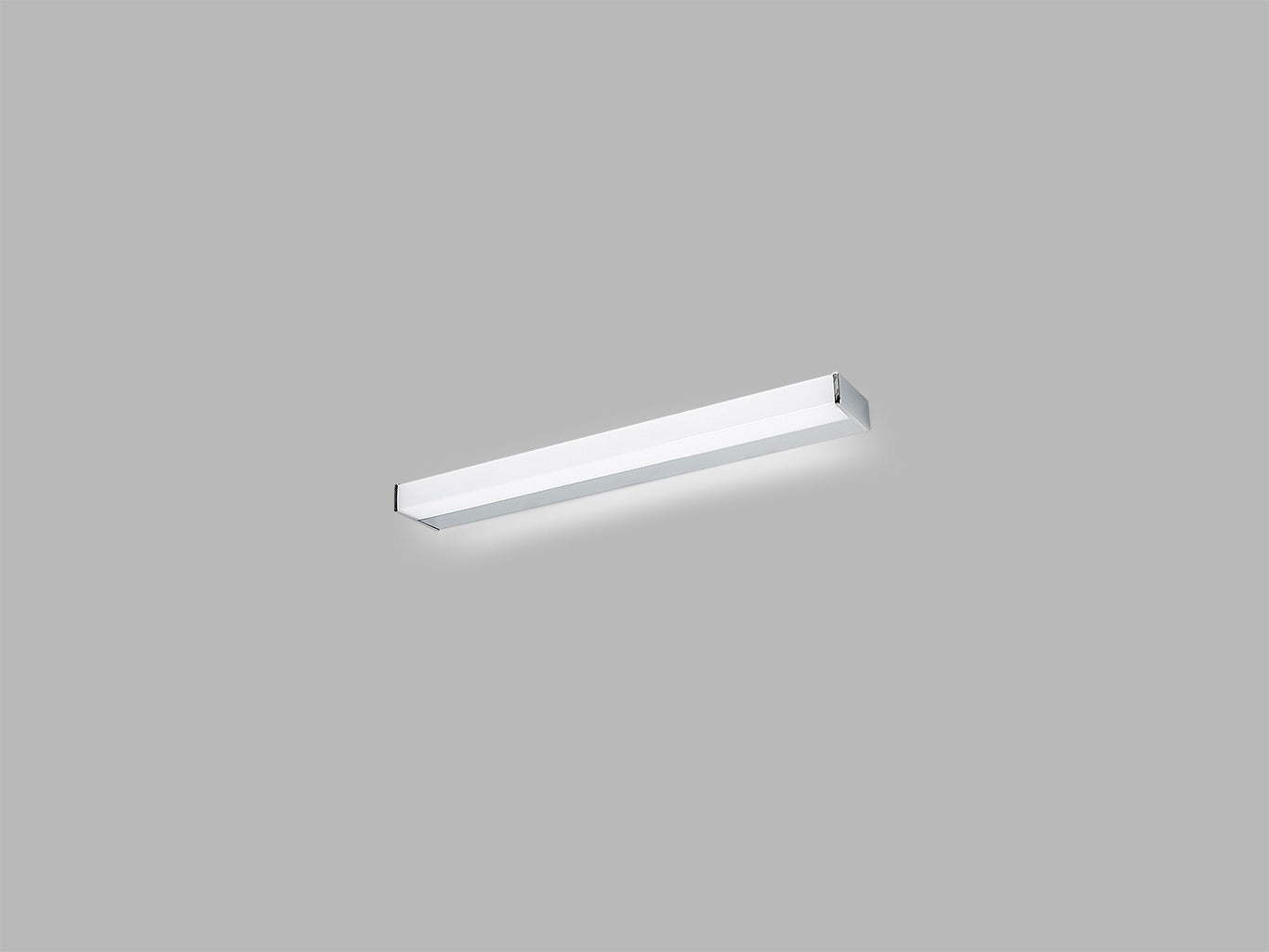

• QUADRA 60 (586 mm) — 12W, 960 lumens, 0.85 kg

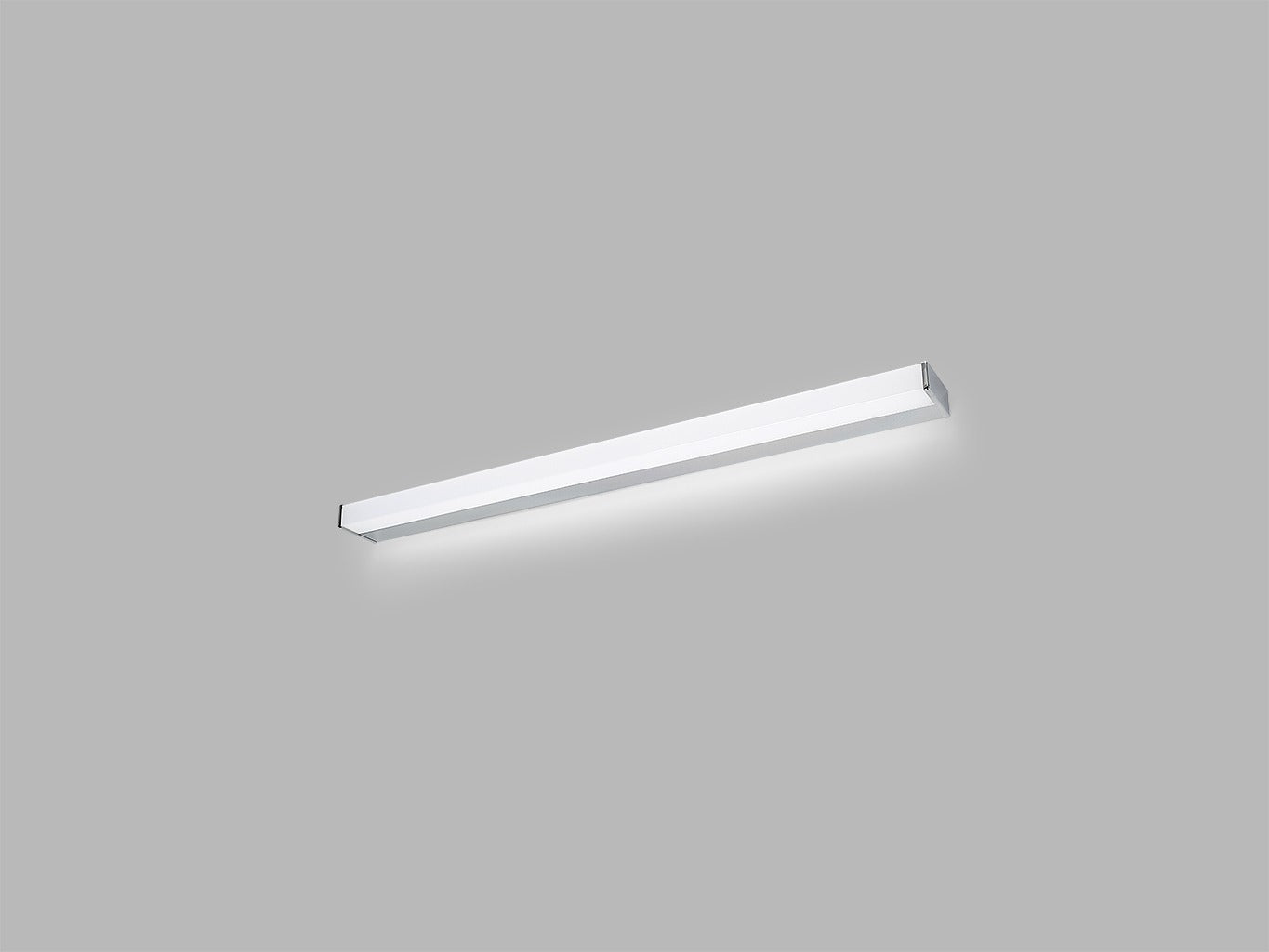

• QUADRA 90 (886 mm) — 18W, 1,440 lumens, 1.1 kg

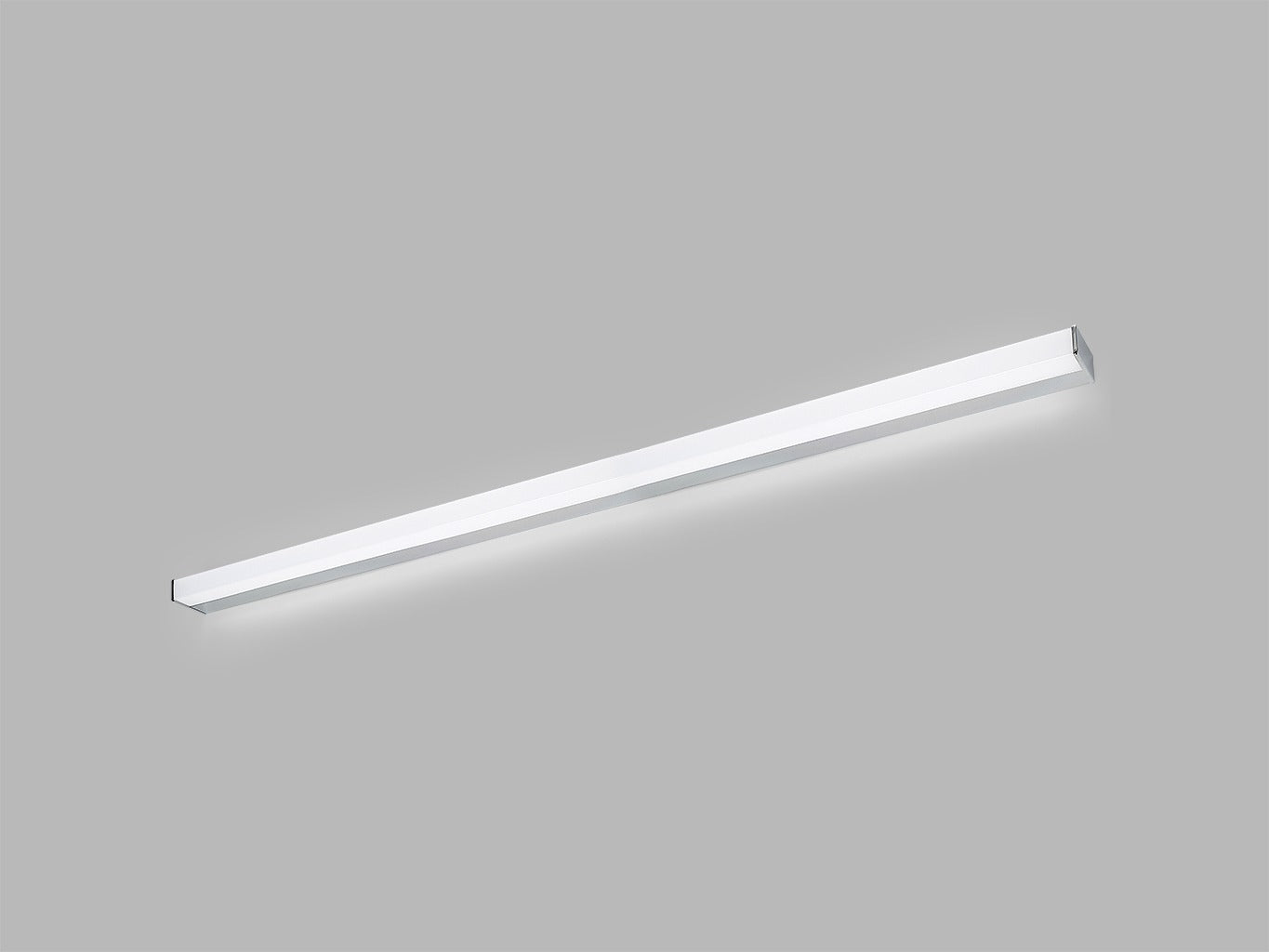

• QUADRA 120 (1,186 mm) — 24W, 1,920 lumens, 1.4 kg

Four control versions

• Standard — on/off switching with CCT switch 3000K/4000K
• DALI / Push — DALI dimmable or push dimmer (QUADRA 90 and 120 only)
• DALI tunable white — DALI DT8 with continuously adjustable color temperature 3000K–4000K
• Casambi tunable white — wireless Casambi control with tunable white

Product features

• Linear LED wall light with square end caps, for indoor use (IP44)
• Chrome aluminum housing, opal PMMA diffuser — slim profile 78 × 40 mm
• Color temperature 3000K / 4000K (adjustable or continuously variable depending on version)
• CRI 90+ for excellent color rendering
• Beam angle: 160° — direct light distribution
• IP44 — splash-proof, suitable for bathroom zone 2
• IK06 — impact resistant
• Protection class I
• Voltage: 220-240V AC, 50-60Hz
• Energy label: G
• 5-year manufacturer's warranty

Application

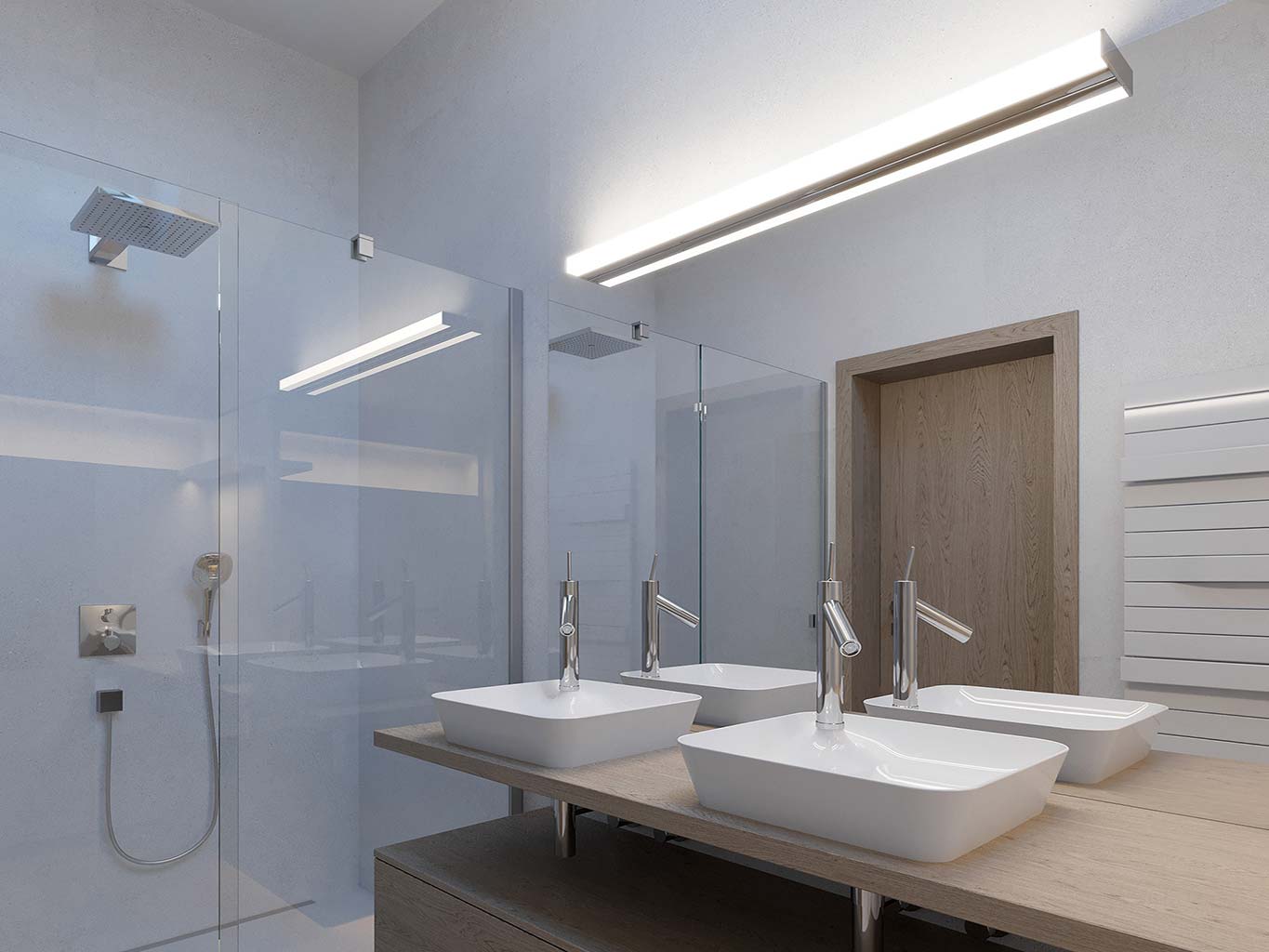

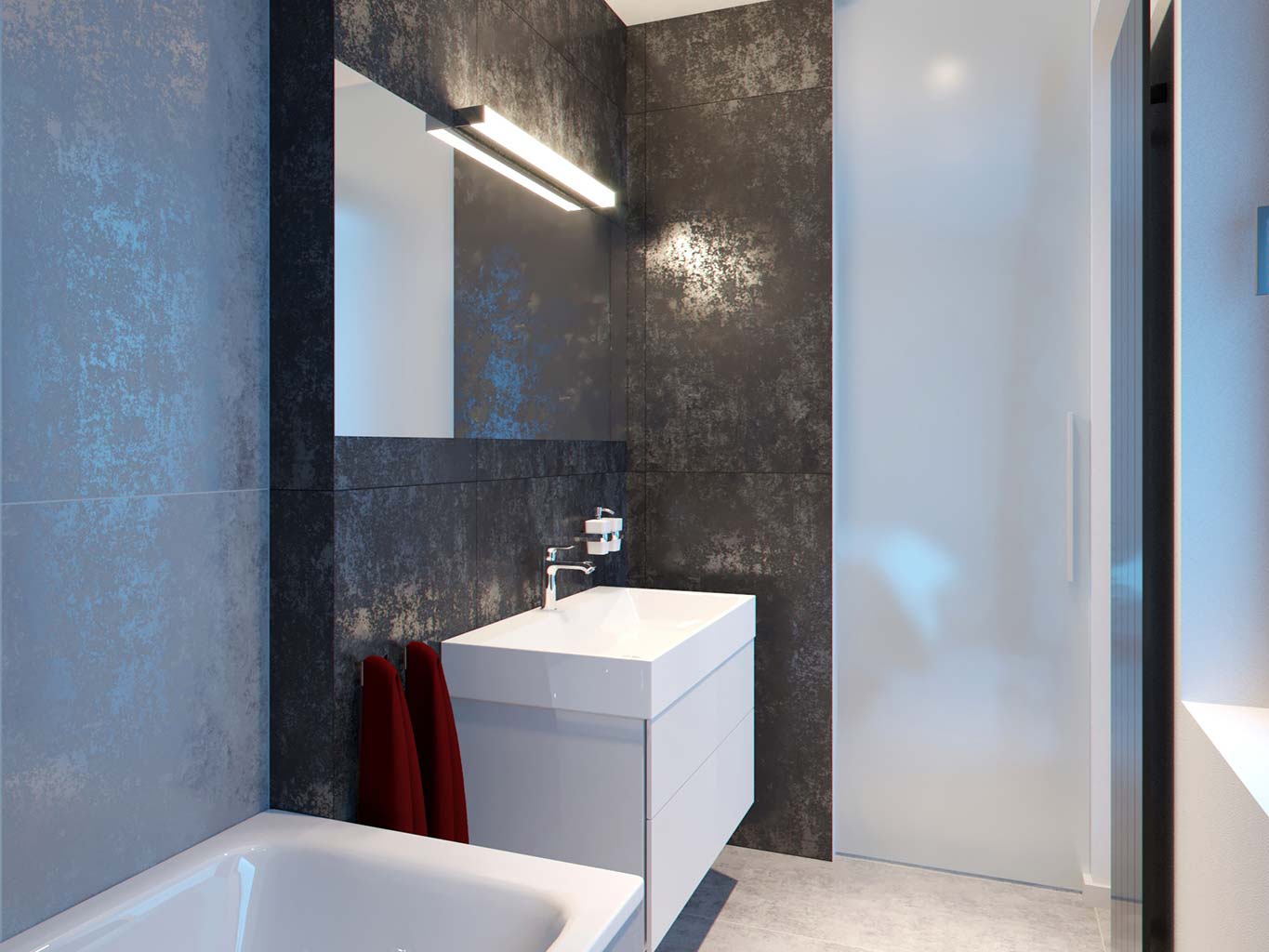

Bathroom lighting above or next to mirrors, sanitary facilities, hair salons, office spaces, hotel lobbies, corridors, and architectural wall accents. The QUADRA is the strictly-square alternative to the TONDA for projects where a cleaner, more architectural look is desired.
