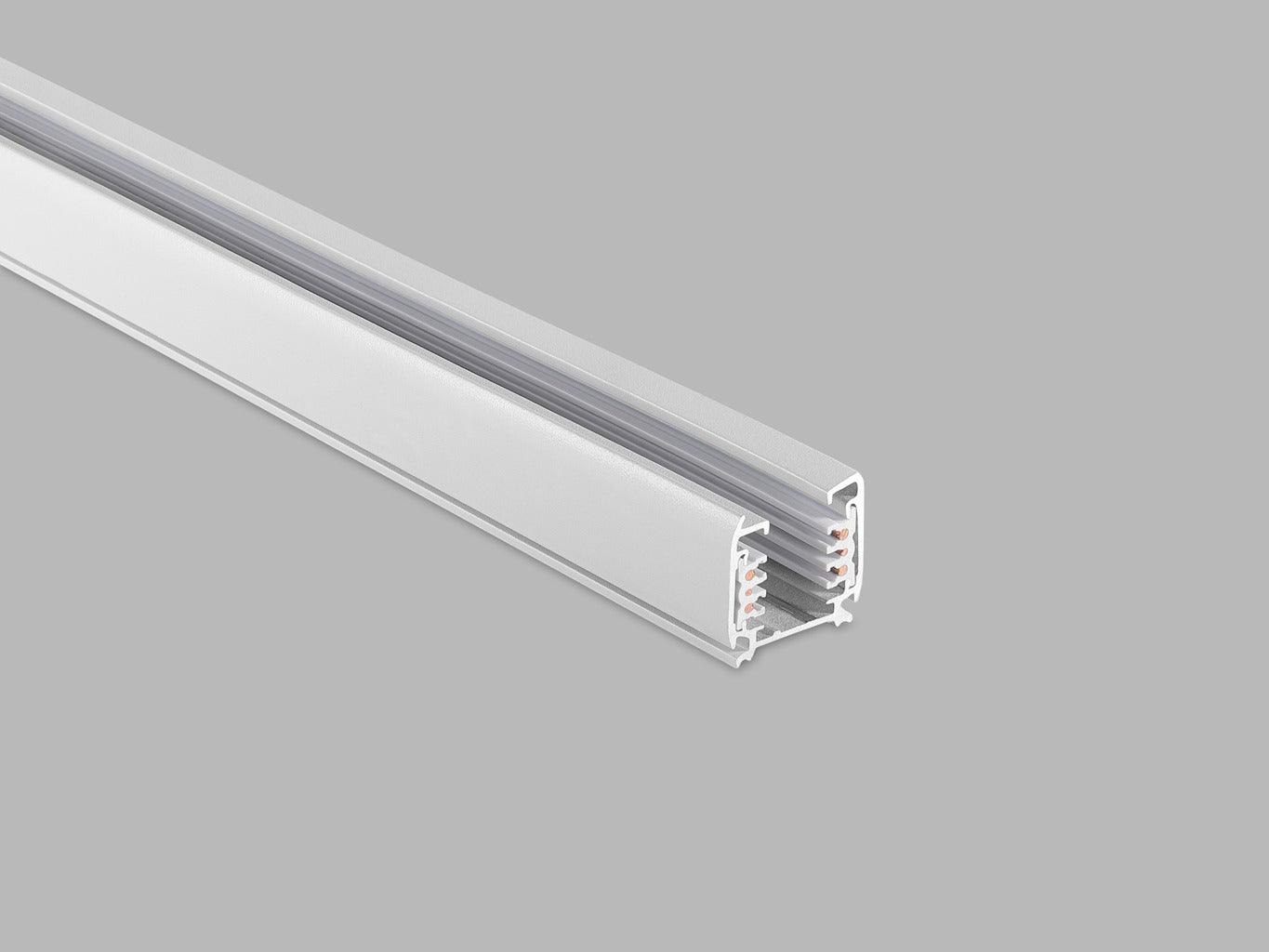

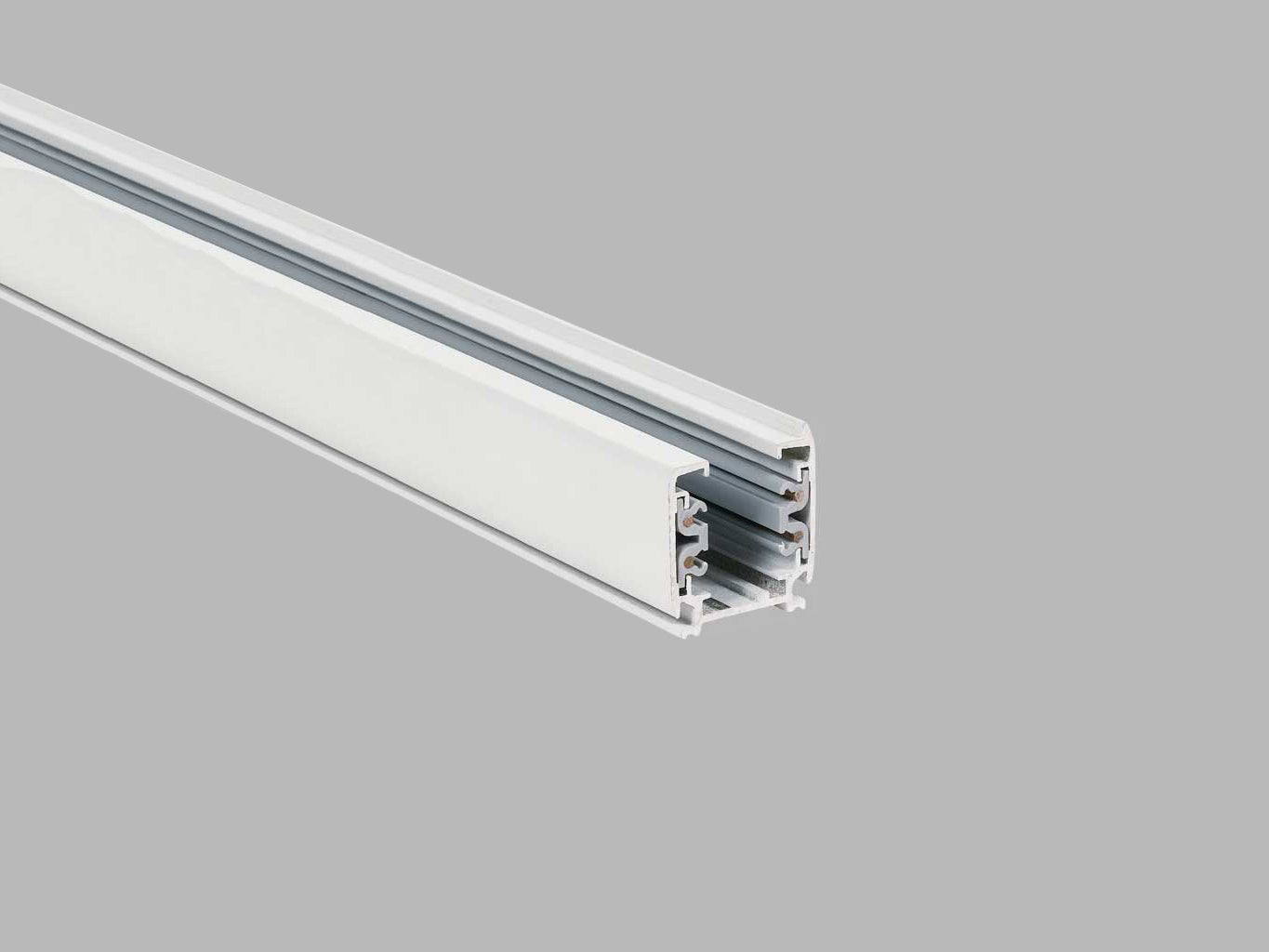

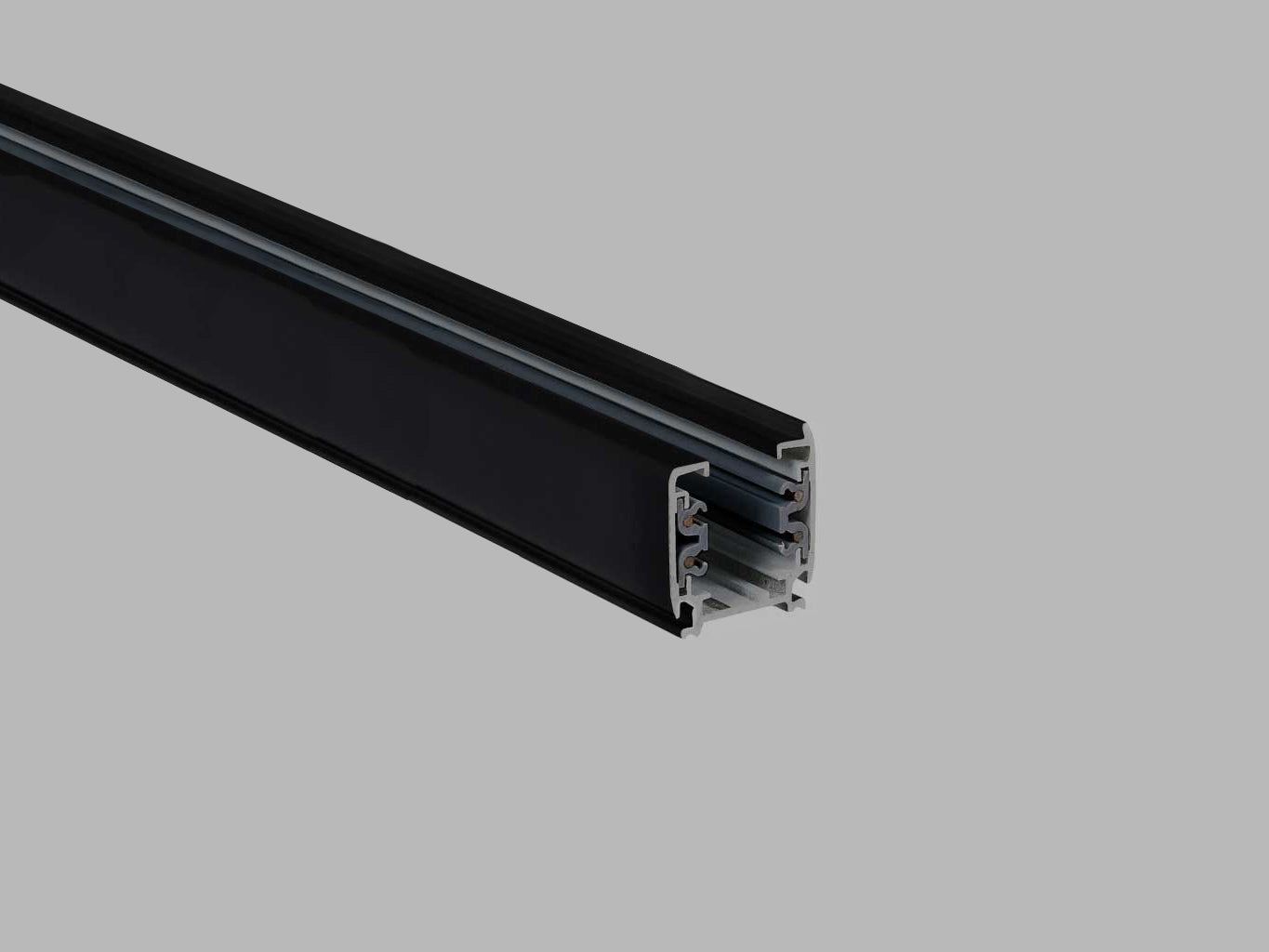

The ECO TRACK 3-phase track (230V) forms the basis of a three-phase track lighting system for shops, offices, showrooms, hospitality, and high-end residential interiors. The sleek aluminum profile can be surface-mounted on the ceiling or wall, or suspended freely with the accompanying ECO TRACK Suspension 7M steel cable pendant set.

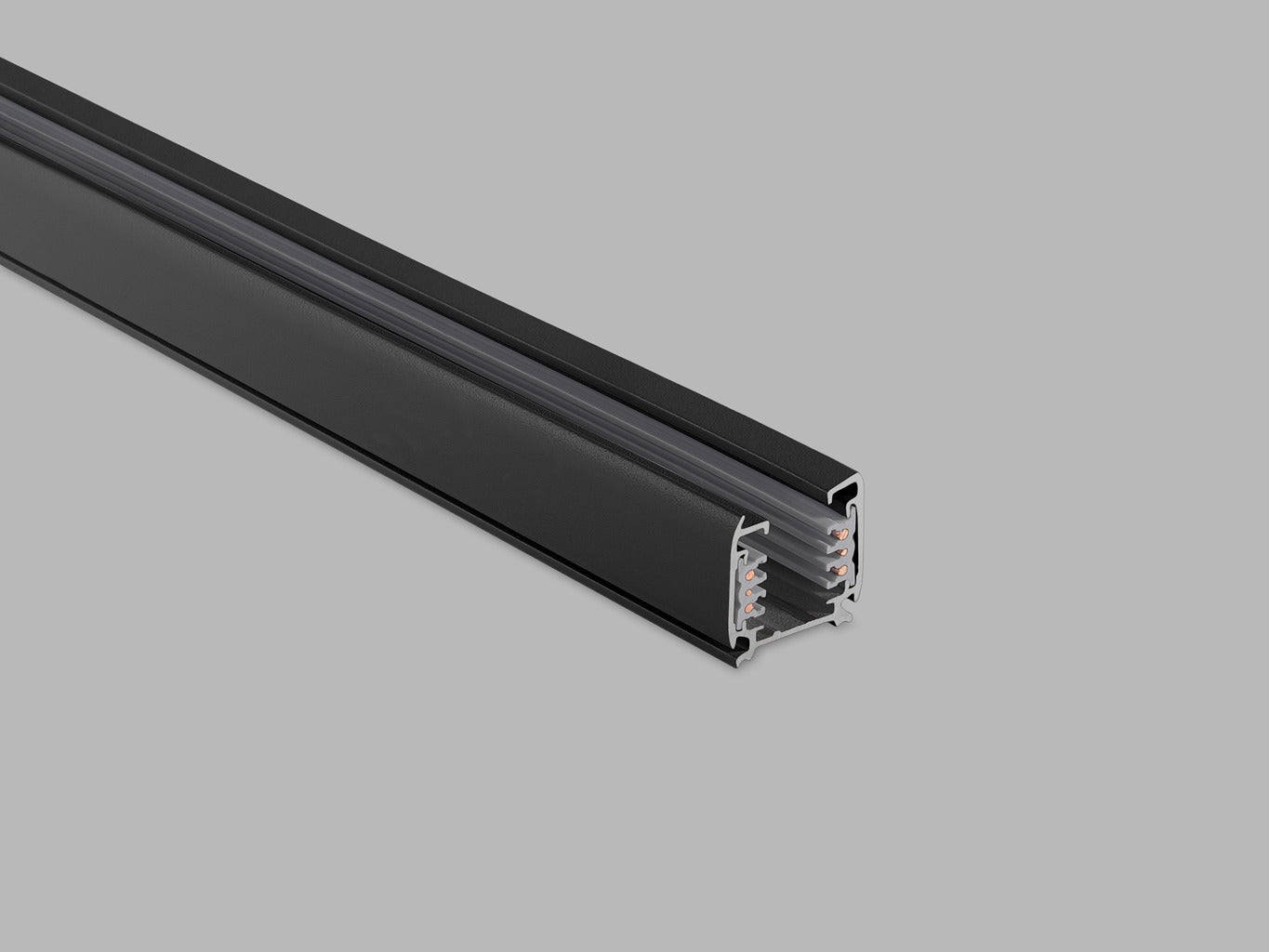

Available in 2 or 3 meters, in white (RAL 9016) or black, and in a standard or DALI-dimmable version. Combine with L-feeds, T-connectors, X-connectors, and flexible connectors for any desired layout.
Specifications
Length: 2 m or 3 m
Color: white (RAL 9016) or black
Material: aluminum
Voltage: 220–240V AC, 50–60Hz
Number of phases: 3 (three-phase)
IP rating: IP 20 (dry indoor areas)
Dimming: standard non-dimmable — choose DALI variant for compatibility with DALI controllers
Product weight: 1.6 kg (2 m) / 2.4 kg (3 m)
Country of origin: China
Suitable for
3-phase 230V track spotlights (E27, GU10 or integrated LED)
Combining with ECO TRACK power feeds, connectors and pendants
Required accessories (to be ordered separately)
ECO TRACK Live End (left or right) — for power supply at track end
ECO TRACK Live Center — for power supply in the middle of a track run
ECO TRACK End Cap — closes off track end without power supply
ECO TRACK Adapter — to hang your own spotlights in the track
